Irpco Hoses

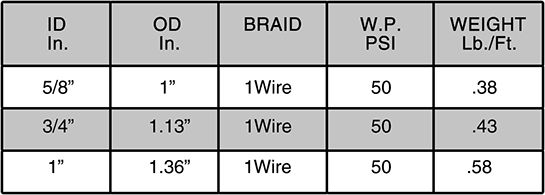

Steelflex Ultra Hardwall Gasoline Hose
A heavy Duty non-collapsible hardwall hose for dispensing gasoline, this construction has minimal cubical expansion Handles 50% aromatic hydrocarbons and unleaded gasoline.
TUBE: Gasoline-resistant Nitrile.
REINFORCEMENT: High-tensil Wire Braid.
COVER: Black abrasion,oil and weather-resistant blend of Nitrile/PVC.
COUPLINGS: Coupled to specifications with IRPCO curb pump hose couplings.
ALSO AVAILABLE IN: * 5/8” red, green or yellow – 3/4” red, blue, green or yellow.
* 25% upcharge for colored hose

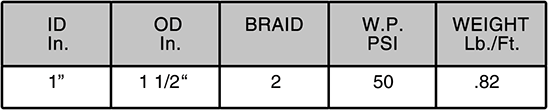

Softwall 2 Braid Gasoline Hose
A flexible lightweight softwall hose for dispensing gasoline. Good for 50% aromatic hydrocarbons and unleaded gasoline Includes a static wire in all sizes.
TUBE: Gasoline-resistant Nitrile.
REINFORCEMENT: Braided high-tensile fiber with static wire.
COVER: Black abrasion,oil and weather-resistant.
COUPLINGS: Coupled to specifications with IRPCO curb pump hose couplings or sold in bulk.

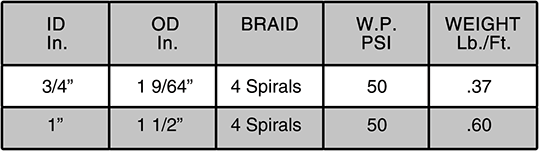

4 SP Softwall Gasoline Hose
An economical flexible lightweight softwall hose for dispensing all types of gasoline and other petroleum products.
TUBE: Gasoline-resistant Nitrile.
REINFORCEMENT: Four synthetic textile spiral cords with static wire.
COVER: Black abrasion, oil and weather-resistant blend of Nitrile/PVC.
COUPLINGS: Coupled to specifications with IRPCO curb pump hose couplings or sold in bulk.

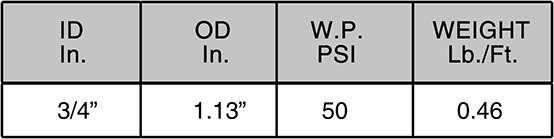

Flexsteel® Futura™ Ethan-ALL™ Gasoline Hose
Flexsteel® Futura™ Ethan-ALL™ dispensing hose assembly is for use in ethanol dispensing applications up to E85. This new assembly provides the quality Futurin™ cover with its superior ozone resistance along with a new premium layline. The tube construction meets the E25/E85 compatibility test requirements of UL87A.
TUBE: Nitrile synthetic rubber.
REINFORCEMENT: Wire braid.
COVER: Futurin™ synthetic rubber with yellow stripe.
TEMPERATURE: -40°F to 140°F

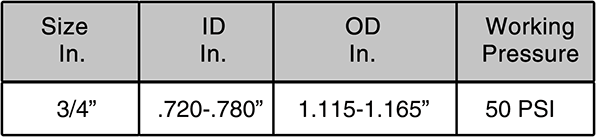

Flexsteel® Futura™ Low Perm Gasoline Hose
Flexsteel® Futura™ Low Perm dispensing hose offers superior, long-lasting service with multi-fuel capability. This hose is designed for use at filling stations to reduce permeation rates to 10 g/m^2/day and improve air quality and emissions.
TUBE: Nitrile Synthetic Rubber with Fluorothermoplastics Barrier Layer.
REINFORCEMENT: Single Wire braid.
COVER: Futurin™ Synthetic Rubber.
PERMEATION: Meets UL330 permeation limit of 10 g/m^2/day.

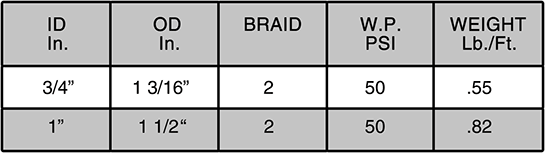

Marina Refueling Gasoline Hose
For handling gasoline and diesel fuel for fueling all types of pleasure craft and commercial vessels.
TUBE: Gasoline-resistant Nitrile.
REINFORCEMENT: Braided synthetic fiber with static wire.
COVER: Green or blue abrasion, oil and weather-resistant non-marking.
COUPLINGS: Permanent couplings recommended. Coupled to specifications or bulk.

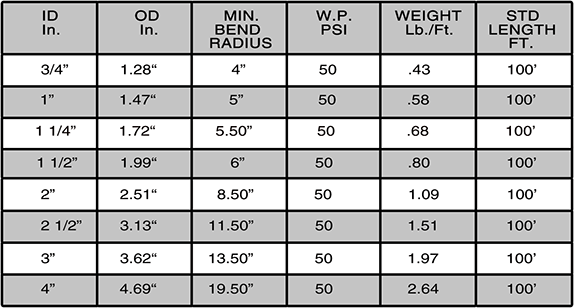

N2700 Kemflex Chemical Hose
Chemical transfer hose used in chemical plants or ship, barge & tank truck service. Tested by Colonial Chemical for use with DEF. The hose exhibited no damage as a result of the exposure and imparted no contaminates to the DEF test fluid.
TUBE: Clear UHMWPE (Ultra-High Molecular Weight Polyethylene).
REINFORCEMENT: Multiple high tensile textile braids with dual steel helix wire.
COVER: Green, black, red or blue, chemical, weather & ozone resistant EPDM.
TEMPERATURE: -40°F to 180°F
ADVANTAGES:
1. Handles almost every common chemical used in the chemical industry. 2. Hose construction gives excellent bending radius. 3. Full vacuum 4. Can be open-end steam cleaned. 5. Tube meets FDA requirements. 6. Special designed EPDM cover for extremely good abrasion resistance.
irpco DEF Dispensing Hose
Specifically designed to convey the aqueous urea solution 32 (AUS 32), a clear 32.5% nitrogen solution of high-purity urea in deionized water.
TUBE: EPDM synthetic rubber, peroxide cured, no zinc.
REINFORCEMENT: Polyester braid.
COVER: EPDM synthetic rubber, peroxide cured, no zinc.
TEMPERATURE: -40°F to 257°F
COUPLINGS: 304 stainless steel male pipe crimped couplings, stainless steel 1” BSPP female swivel or 3/4” BSPP male.

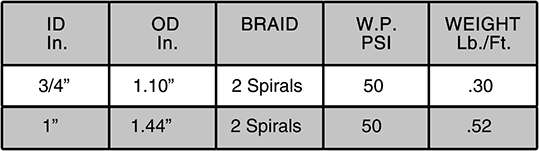

Farm Tank Fuel Hose
A flexible hose for dispensing gasoline, kerosene or fuel oils by gravity feed or hand pumps.
TUBE: Gasoline-resistant Nitrile.
REINFORCEMENT: 2 Synthetic Spiral Cord with static wire.
COVER: Black abrasion, oil and weather-resistant Nitrile blend.
TEMPERATURE: -40°F to 257°F
COUPLINGS: Coupled with male NPT on each end. Coupled to specifications or bulk.

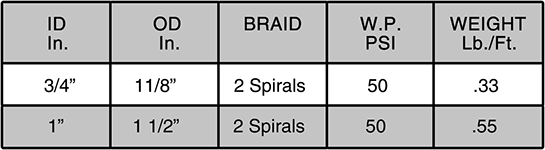

Premium Farm Pump Fuel Hose
A premium hose for dispensing gasoline, kerosene or fuel oils by gravity feed, hand pumps, electric farm pumps or barrel pumps.
TUBE: Gasoline-resistant Nitrile.
REINFORCEMENT: 2 Synthetic Spiral Cord with static wire.
COVER: Black abrasion, oil and weather-resistant Nitrile blend.
TEMPERATURE: -40°F to 257°F
COUPLINGS: Coupled with male NPT on each end. Coupled to specifications or bulk.

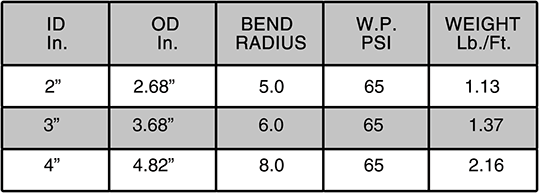

Kanapower ST 120 LT Petroleum Transfer Hose
Gasoline tank truck gravity drop hose for such items as naphtha, kerosene, light and heavy oil, and gasohol. Up to 15% ethanol mixture. Not for Biodiesel.
TUBE: Nitrile rubber, rigid PVC helix, synthetic braiding, smooth bore corrugated O.D with static wire.
TEMPERATURE: -30°F to 140°F
FEATURES:
– Lightweight and flexible.
– External helix provides for easy drag.
– Rated for up to 40% aromatic content.
– Available with static grounding wire.
* ST 120 LT NOTE: Banding sleeves must be used for 3” and 4” sizes.

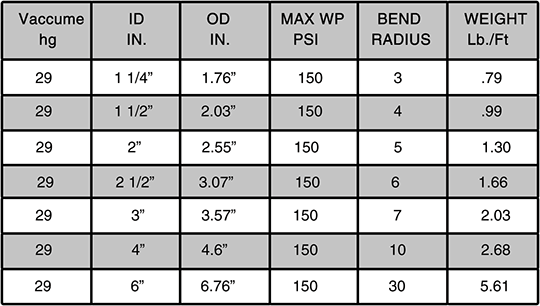

Black Flexwing Petroleum Transfer Hose
Plicord Flexwing Petroleum hose is used in tank truck and in-plant operations to transfer gasoline, oil and other petroleum base products up to 50% aromatic content. It is designed for pressure, gravity flow or full suction service.
TUBE: Nitrile synthetic rubber – High oil resistance.
REINFORCEMENT: Spiral plied synthetic fabric with wire helix.
COVER: Black Chemivic synthetic rubber (oil resistant) with spiral red stripe. Smooth cover wrapped finish.
TEMPERATURE: -35°F to 200°F
PACKAGING: 100’ Lengths
*NOTE: 1 1/2” thru 3” Stock

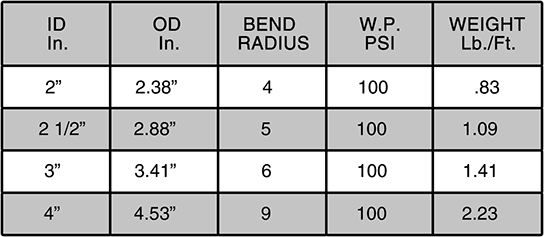

RED FLEXTRA Petroleum Transfer Hose
For the transfer of ethanol blends of gasoline and other petroleum base products under pressure, gravity flow or full suction where maximum flexibility is needed.
TUBE: Nitrile synthetic rubber (oil resistant).
REINFORCEMENT: Spiral plied synthetic fabric with double wire helix.
COVER: Red Wingprene, corrugated synthetic rubber (oil resistant) with white spiral stripe.
TEMPERATURE: -30°F to 180°F
PACKAGING: 100′ lengths

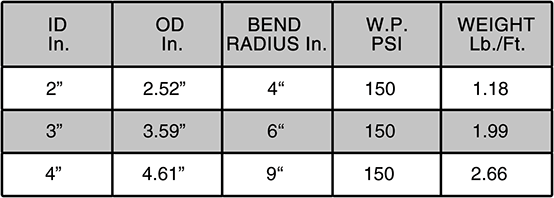

RED FLEXTRA® 150 Petroleum Transfer Hose
For the transfer of ethanol blends of gasoline and other petroleum base products under pressure, gravity flow or full suction where maximum flexibility is needed.
TUBE: Nitrile synthetic rubber (oil resistant).
REINFORCEMENT: Spiral plied synthetic fabric with double wire helix.
COVER: Red Wingprene, corrugated synthetic rubber (oil resistant) with blue spiral stripe.
PACKAGING: 100’ lengths

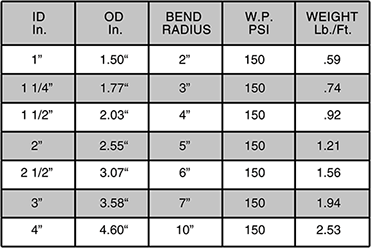

Flexwing Versafuel Transfer Hose
For use in tank truck and in-plant operation to transfer diesel, biodiesel blends, B-100, ethanol blends, gasoline, oil and petroleum base products up to 60% aromatic content.
TUBE: Synthetic rubber (Static dissipating).
REINFORCEMENT: Spiral plied synthetic fabric with wire helix.
COVER: Black synthetic rubber with excellent resistance to biodiesel, ethanol, oil/petroleum products and abrasion.
TEMPERATURE: -30°F to 180°F
PACKAGING: 100’ Lengths

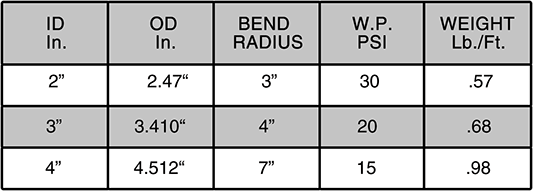

Spiraflex Polyurethane Vapor Recovery Hose
For the recovery of gasoline vapors in tank truck loading at bulk terminals and in tank truck unloading at service stations.
TUBE: Transparent Polyurethane.
REINFORCEMENT: Red rigid Pliovic helix with static wire.
COVER: Transparent Polyurethane.
TEMPERATURE: -30°F to 150°F
PACKAGING: 100’ Lengths

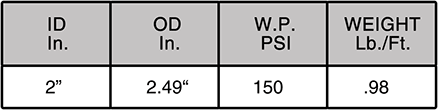

Plicord (Continental) Fuel Discharge Hose
Plicord Fuel Discharge hose is for the discharge of gasoline, oil and other petroleum based products in tank and industrial applications.
TUBE: Nitrile synthetic rubber (oil resistant) plus antistatic wires.
REINFORCEMENT: Spiral plied synthetic fabric (2” – 4” = 2 ply; 6” = 4 ply).
COVER: Black Chemivic synthetic rubber class B (medium oil resistance).
TEMPERATURE: -35°F to 180°F
PACKAGING: 150’ Lengths

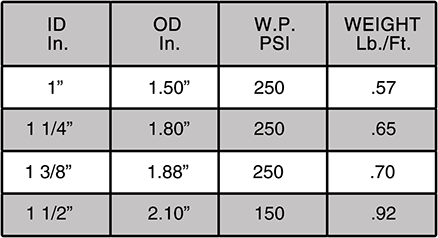

irpco Fuel Oil Transfer Hose
Fuel Oil hose is for transfer and delivery of fuel oil and petroleum products for in home delivery, commercial and industrial service. Braided construction for reducing kinking and twisting when reeling.
TUBE: Nitrile synthetic rubber (oil resistant).
REINFORCEMENT: Braided (2) synthetic yarn.
COVER: Red Chemivic synthetic rubber (smooth finish) (ORS).
TEMPERATURE: -40°F to 180°F
PACKAGING: Reels, cut lengths, coupled lengths.

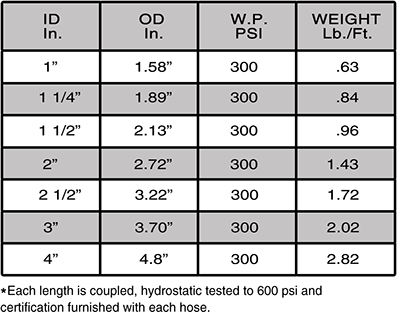

Wingcraft Aircraft Fueling Hose
Wingcraft Aircraft Fueling hose is for fueling or de fueling commercial and private aircraft. It handles jet fuel and the higher aromatic aviation gasoline. Its high working pressure permits use in fuel cart hydrant service. Hose meets EI 1529-7th edition. 2014 and N.F.P.A. Bulletin #407 (2017 revision).
TUBE: Black Nitrile synthetic rubber.
REINFORCEMENT: Spiral plied synthetic fabric.
COVER: Black Wingprene (ORS) static dissipating / static conductive synthetic rubber.
TEMPERATURE: -35°F to 200°F

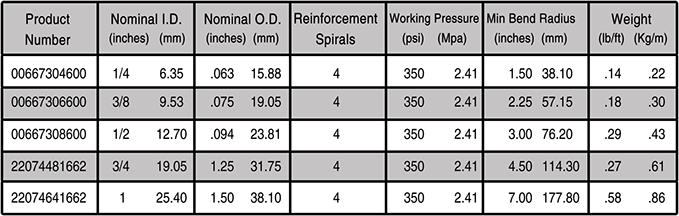

L-83 Butane - Propane Hose and Coupling
L-83 Butane-Propane hose is specifically designed for transferring liquefied propane gas from bulk storage tank cars, cylinders or from bobtail trucks to home storage tanks. The black cover resists oil, snagging and abrasion. This hose has been pin-pricked to permit gas diffusion. The cover is smooth, making it a driver’s choice. This hose has multi-spiral, high tensile reinforcement providing maximum strength and flexibility. It is engineered for a minimum burst of 1750 pounds for the ultimate in safety. Note: Do not use reusable couplings with this product. This hose is intentionally pin-pricked for safety reasons. L-83 Butane-Propane hose must be used in an open, well-ventilated environment.
OIL RESISTANCE: High, Medium-High.
TUBE: NBR, RMA Class A.
REINFORCEMENT: 2 or 4 spiral polyester yarn.
COVER: Red Chemivic synthetic rubber (smooth finish) (ORS).
TEMPERATURE: -40°F to 180°F
PACKAGING: Reels, *Coupled lengths D.O.T. test certificate included with assemblies. Hose assemblies tested/approved to 7/1/99 D.O.T. regulations.

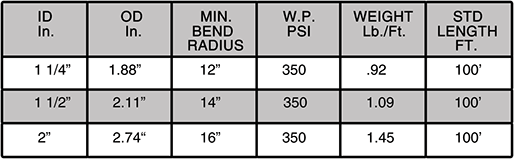

N372A Petroleum Impact LPG Hose
For transfer of LPG in bulk storage tanks and bulk truck service.
ADVANTAGES:
-High grade LPG resistant Nitrile tube.
-High grade Neoprene cover.
-Meets UL 21.
-Cover is pin pricked.
-Light and flexible.
-Construction and compound quality gives excellent lifetime.
TUBE: High grade black LPG resistant nitrile.
REINFORCEMENT: Multiple braids of high tensile textile.
COVER: Abrasion, weather & ozone resistant black neoprene.
TEMPERATURE: -40°F to 180°F

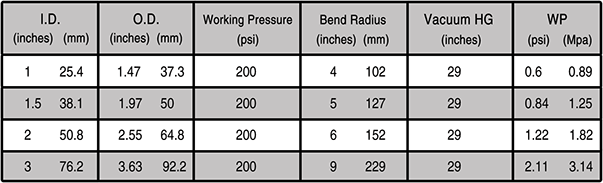

Continental DEF Transfer Hose
Diesel Exhaust Fluid (DEF: aqueous 32.5% nitrogen solution of high-purity urea in deionized water) sometimes known simply as urea – is a key component of selective catalytic reduction (SCR) systems, which help diesel vehicles meet stringent emission regulations effective January 1, 2010. DEF is a liquid reducing agent that reacts with engine exhaust in the presence of a catalyst to convert smog-forming nitrogen oxides (NOx) into harmless nitrogen and water vapor.
TUBE: Pliosyn™ Ultra‐High Molecular Weight Polyethylene (UHMWPE) with proprietary backing. Tube tested per ISO 22241-2 immersion test at independent lab to confirm compatibility with DEF aqueous solution.
REINFORCEMENT: Spiral‐plied synthetic fabric with double wire helix.
COVER: Black EPDM
TEMPERATURE: -40°F to 150°F
PACKAGING: 100′ lengths
Flexsteel® Futura™ E25 Dispensing Hose
Flexsteel® Futura™ E25 dispensing hose assembly is approved to UL330 / UL330A for use in dispensing applications up to E25.
TUBE: Nitrile Synthetic Rubber.
REINFORCEMENT: Single Wire braid.
COVER: Futurin™ Synthetic Rubber with orange stripe.
TEMPERATURE: -40°F to 150°F
